Technical details
| E129 M | E129 M BCS | E129 M BCS | E129 M | E129 M | |
|---|---|---|---|---|---|
| Energy efficiency class | A+ | A+ | A+ | A+ | A+ |
| Rated output | 7,9 kW | 7,8 kW | 7,8 kW | 7,9 kW | 7,9 kW |
| Efficiency | 85,7 % | 87,6 % | 87,6 % | 85,7 % | 85,7 % |
| Heatable volume | 135 - 230 m³ | 130 - 225 m³ | 130 - 225 m³ | 135 - 230 m³ | 135 - 230 m³ |
| Wood consumption | 2,2 kg/h | 2,1 kg/h | 2,1 kg/h | 2,2 kg/h | 2,2 kg/h |
| Ø Flue outlet | 15 cm | 15 cm | 15 cm | 15 cm | 15 cm |
Downloads
Product sheets
E129 M Hermetic (Multifuoco System)-en.pdf
E129 M Hermetic BCS (Multifuoco System Plus)-en.pdf
E129 M Hermetic BCS (Convezione naturale)-en.pdf
E129 M Hermetic (Convezione naturale)-en.pdf
E129 M Hermetic (Multifuoco System Plus)-en.pdf
EU Product sheet
S.P.1186+1185 E129 M MF 7,9KW A+.pdf
S.P.1186+1185 E129 M BCS MF 7,8KW A+.pdf
S.P.1186+1185 E129 M BCS 7,8KW A+.pdf
S.P.1186+1185 E129 M 7,9KW A+.pdf
S.P.1186+1185 E129 M MF 7,9KW A+.pdf
Technical drawings
DisegnoTecnico-E129 M Hermetic.pdf
DisegnoTecnico-E129 M Hermetic BCS.pdf
DisegnoTecnico-E129 M Hermetic BCS.pdf
DisegnoTecnico-E129 M Hermetic.pdf
DisegnoTecnico-E129 M Hermetic.pdf
DisegnoTecnico-E129 M Hermetic.pdf
DisegnoTecnico-E129 M Hermetic.pdf
Declaration of performance
Energy class label
E.E.2015_1186 E129 M MF 7,9KW A+.pdf
E.E.2015_1186 E129 M BCS MF 7,8KW A+.pdf
E.E.2015_1186 E129 M BCS 7,8KW A+.pdf
E129 M

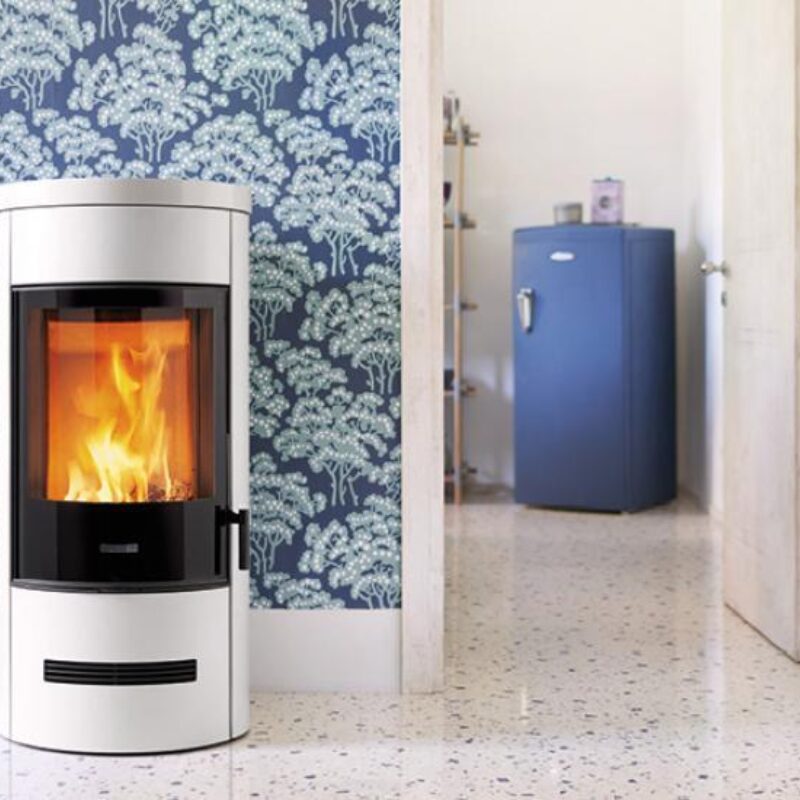

The Wood Stove E129 M, for Wall/Corner installation and cladded in Steel, with its 7.8 KW, is a refined appliance from the Trend Line range by Piazzetta. Discover all the features in the Multifuoco System ducting system and lots more.
Main features
- Natural heating
- Majolica and steel
- Ash box
- Primary e Secondary air adjustable
- Wall
- Rear flue outlet
- Upper flue outlet
- Front ventilation
- Aluker
- Multifuoco System 4 levels
- Air wash
- Corner
- Tertiary air
- BCS
- Hermetic
- Outside air electronic control
Optional
- Umidificatore
- Vacuum
